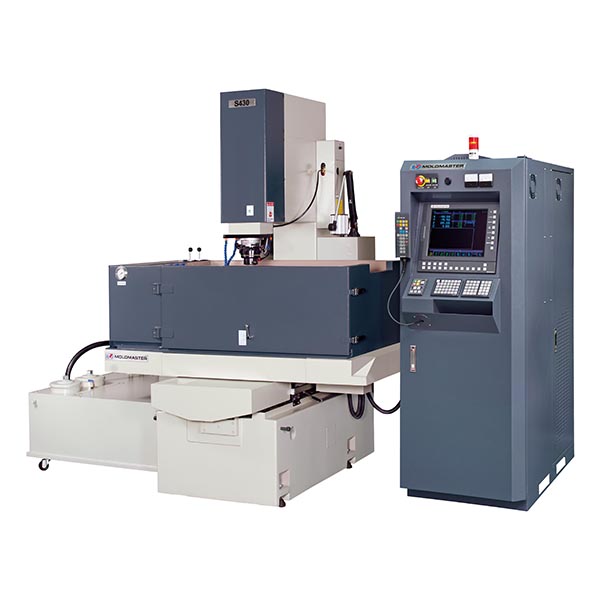

CNC EDM S SERIES
High Cost-Effective EDM
Feature
Reliability, efficiency, and performance are qualities that dictate the design of Moldmaster EDM.
[Newly designed high precision head (Z-axis)]
The specially designed spindle resists heavy load and features high rigidity, and keep high precision machining depth at all times when high-speed traverse rate is over 2m/min. for a long time.
[New Power Supply & Control System]
The newly designed power supply control system provides realtime and stable energy control, which is not affected by the environmental fluctuation. Unique discharge detection in combination with high resolution movement control dramatically increases fine finishing speed. Avoids surface hole erosion and creates extra fine surface.
[Power -Less Than 0.05% Super-Low Wear Circuit]
The advanced digitized power technology control the production of every electrical current and adopt equal energy's discharge circuit design to make after-finework polishing very easy. Now, electrode wear ratio referring to SL circuit below 0.05% from thick to thin only need a electrode to complete high precision work. Cleaner machining in corners, rising points, channels, ribs, and sharp angles contribute to a very low electrode wear. Specially providing 2mm ~ 5mm small piece and small clearance discharge conditions will be most suitable for Electron Information Precision Mold Industry to work with particular low wear. A modern Fuzzy intelligent control system provides the auto adjustments of machining parameters and improve the machining efficiency and safety. More easy to use, a beginner can operate like an expert.
[HQSP The High Quality Super Polishing Equipment](optional)(Taiwan invention patent: I229622)
HQSP is able to substantially increase luster Surface Area Limitation to approximately 400cm². The time for completion of luster surface area is approximately 1/2-1/5 longer, to reduce the machining surface cracking and saves time and efforts in manual polishing operations after machining.
[Windows interface] (optional)
- More user friendly graphical interface improves the user familiarity with the system also reduces the time of learning.
- Diversification measurement function (3 points for Center, unsymmetrical groove unsymmetrical column, parallel calibration)
- Multi-workpiece automatic measurement with the same size, the coordinates can be recorded for the convenience of program editing.
- Programmable measurement, the measurement function can be edited into program, for the needs of automation operation.
- Program check, alert the user program errors and the cause.
- Remote monitoring by mobile phones, pads, or laptops anytime anywhere.
- Remote program editing on laptops anywhere.
- Compatible with EROWA calibration equipments.
- Compatible with any coordinate measuring machine(CMM) electrode compensation files.
